Get Metrics V5 abandonment by stages

Introduction

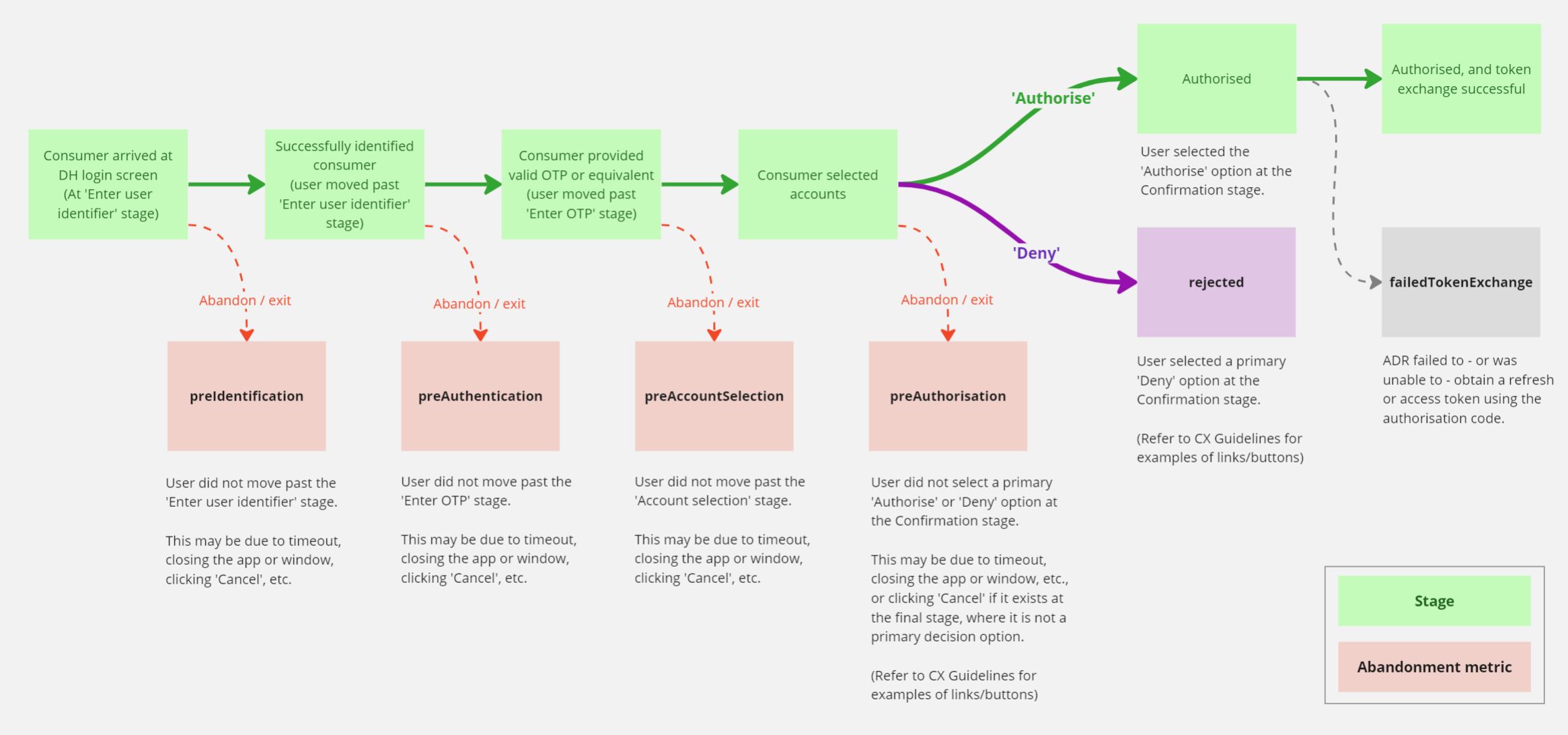

The consent flow can be abandoned or otherwise exited at a number of stages. The following diagram shows the stages and corresponding abandonment and exit metrics.

Data Holders are not expected to report abandonments prior to the preIdentification phase. See CDR metrics and reporting by Data Holders, Abandonments.

Notes on the meaning of abandonment and exit metrics

• preIdentification:
  The number of authorisations (or amendments) where the user did not move past the 'Enter user identifier' stage (either due to entering it incorrectly, or abandoning for any other reason).
• preAuthentication:
  The number of authorisations (or amendments) where the user moved past the 'Enter user identifer' stage (whether the user identifier was valid or not), but did not move past the 'Enter OTP' stage (either due to credential mismatch, or abandoning for any other reason).
• preAccountSelection:
  The number of authorisations (or amendments) where the user moved (successfully) past the 'Enter OTP' stage, but did not move past the 'Select accounts' stage.
• preAuthorisation:
  The number of authorisations (or amendments) where the user moved past (or skipped, if it was not presented) the 'Select accounts' stage, but did not select one of the primary 'Deny' or 'Authorise' options at the final stage. Refer to CX Guidelines for examples of links and buttons.
• rejected:
  The number of authorisations (or amendments) where the user moved past (or skipped) the 'Select accounts' stage, and selected a primary 'Deny' option at the final stage.
• failedTokenExchange:
  The number of authorisations (or amendments) where the user selected 'Authorise' at the final stage, but the ADR failed to - or was unable to - obtain a refresh or access token using the authorisation code.

AuthorisationMetricsV2 schema

The AuthorisationMetricsV2 schema captures these exits from the flow with the following fields:

• abandonedConsentFlowCount
• abandonmentsByStage
  • preIdentification
  • preAuthentication
  • preAccountSelection
  • preAuthorisation
  • rejected
  • failedTokenExchange

If there are no previous abandonments, rejections or failed token exchanges on the current day or on previous days, the AuthorisationMetricsV2 abandonments section has zeroes for all currentDay and previousDays counts, and looks like the following:

"abandonedConsentFlowCount":{
  "currentDay":0,
  "previousDays":[0]
},
"abandonmentsByStage":{
  "preIdentification": {
    "currentDay":0,
    "previousDays":[0]
  },
  "preAuthentication":{
    "currentDay":0,
    "previousDays":[0]
  },
  "preAccountSelection":{
    "currentDay":0,
    "previousDays":[0]
  },
  "preAuthorisation":{
    "currentDay":0,
    "previousDays":[0]
  },
  "rejected":{
    "currentDay":0,
    "previousDays":[0]
 },
 "failedTokenExchange":{
    "currentDay":0,
    "previousDays":[0]
 }
}


One stage counted per exit

When a consumer exits consent at some stage, the count for that stage increments, and the overall abandonments count increments.

Exit is furthest stage reached

The consumer is considered to have exited the consent flow at the furthest stage the consumer reached in the flow.

Amendment flows

Abandonments in an amendment flow are treated like any other abandonment, even though an amendment may skip a profile selection screen. The amendedAuthorisationCount field is incremented for a successful amendment.

Abandonment examples

Some examples demonstrate how exits from the consent flow are recorded.

In the following examples, to avoid repetition, parts of the abandonmentsByStages object that do not change are replaced with ellipses: ...

After abandoning at the preAuthorisation stage, the abandonedConsentFlowCount increments by 1, and the abandonmentsByStage, preAuthorisation stage increments by 1.  These are the only changes.

"abandonedConsentFlowCount":{
  "currentDay":1,
  "previousDays":[0]
},
"abandonmentsByStage":{
...
  "preAuthorisation":{
    "currentDay":1,
    "previousDays":[0]
  }
},
...

Later that day a consumer explicitly rejects a consent. The abandonedConsentFlowCount increments by 1, and the abandonmentsByStage, rejected count increments by 1.

"abandonedConsentFlowCount":{
  "currentDay":2,
  "previousDays":[0]
},
"abandonmentsByStage":{
...
  "preAuthorisation":{
    "currentDay":1,
    "previousDays":[0]
  }
  ...
  "rejected":{
    "currentDay":1,
    "previousDays":[0]
  }
  ...
},
...

Then a consumer exits at the preIdentification stage. The abandonedConsentFlowCount increments by 1, and the abandonmentsByStage, preIdentification count increments by 1.

"abandonedConsentFlowCount":{
  "currentDay":3,
  "previousDays":[0]
},
"abandonmentsByStage":{
...
  "preIdentification":{
    "currentDay":1,
    "previousDays":[0]
  }
  ...
  "preAuthorisation":{
    "currentDay":1,
    "previousDays":[0]
  }
  ...
  "rejected":{
    "currentDay":1,
    "previousDays":[0]
  }
  ...
},
...
